Many consumers have a concern when buying a waterproof mattress protector: "Since it's waterproof, it must not be breathable, right? Will it feel as stuffy as sleeping on a plastic sheet in summer?" This is a classic technical misunderstanding. Today, we invite you into the microscopic world to uncover the core material—Thermoplastic Polyurethane (TPU)—and how it achieves the seemingly contradictory functions of "waterproof and breathable."
1.Core Technology: The TPU Nanomembrane
The magic of a waterproof mattress protector lies entirely in its inner lining layer.

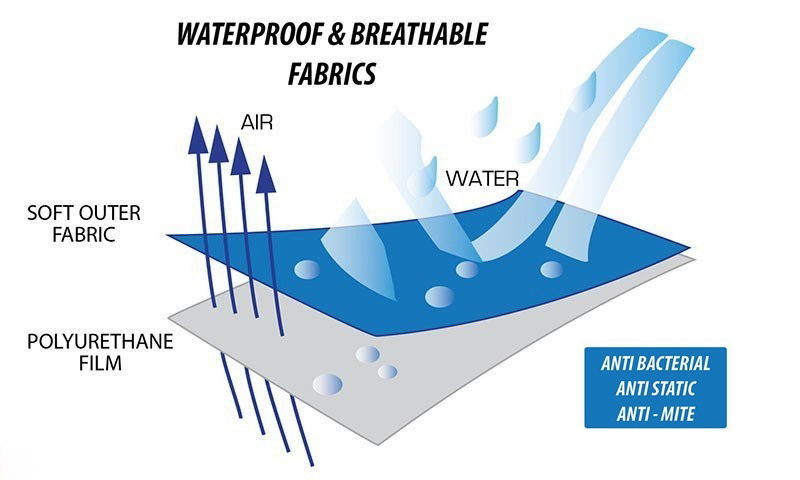

● Microporous Principle: During production, TPU films are engineered with special processes to form countless uniformly distributed nanoscale micropores. The pore diameter is precisely controlled between 0.1 microns and 1 micron—a carefully calculated range based on the following logic:
● Leak-Proof: Liquid water does not exist as individual water molecules but as molecular clusters formed by numerous water molecules held together by hydrogen bonds, typically measuring over 100 microns in diameter (depending on the liquid state and surface tension). When liquid water (e.g., urine, spilled milk, beverages) contacts the TPU membrane, its molecular clusters are far larger than the micropores. Combined with the surface tension of water, droplets are blocked at the membrane surface just like water beading on a lotus leaf. This is the physical basis for "leak-proof" performance.
● Free Breathing: Perspiration released by the body during sleep exists as individual water molecules or extremely small clusters in a gaseous state. A single water molecule measures approximately 0.0004 microns in diameter—hundreds of times smaller than the micropores in the TPU membrane. Therefore, these gaseous water molecules pass unhindered through the micropores, migrating from inside the mattress to the external environment. This process is driven by a humidity gradient—higher humidity inside the mattress vs. lower humidity outside—resulting in natural moisture vapor transfer from the high-concentration area to the low-concentration area, enabling continuous "free breathing."
2.How to Distinguish Inferior PVC from Premium TPU
On the market, some low-priced protectors still use PVC materials.
● Tactile Difference: PVC is completely non-breathable, leading to noticeable stuffiness and a damp feeling when sleeping. TPU, in contrast, offers excellent skin-friendliness and breathability.
● Noise Difference: PVC produces a loud crinkling sound when crumpled. TPU is very soft and provides outstanding noise-free performance.
● Environmental Friendliness: TPU is an eco-friendly material, free of plasticizers, and degradable. PVC may release harmful substances at high temperatures.
3.Other Factors Affecting Breathability
Beyond the TPU membrane on the bottom, the top fabric also plays a critical role.
●Physical Wicking Effect: The top layer, made of cotton or bamboo fibers, quickly absorbs sweat from the skin surface and transfers it to the membrane, where it is then expelled.
●Lamination Process: Reputable brands use a "dot-lamination" process rather than full adhesive coating. Dot-lamination preserves more air gaps between materials, further enhancing breathability.
4.Scientific Verification: How to Test at Home?
Want to know how breathable your protector is? Try this simple experiment:
Take a clear glass and fill it halfway with hot water. Turn the waterproof protector over (TPU membrane side down) and place it over the glass mouth. Invert a dry empty glass on top. After a few minutes, if you observe water vapor condensation on the inner wall of the upper glass, it means water vapor has successfully penetrated the membrane. This is the best proof of breathability!
Cutting-edge technology is not only changing fabrics but also improving our quality of life. Understanding the principle of TPU, you can confidently say goodbye to stuffiness and enjoy a dry, breathable, five-star sleep.
